Enhanced GNSS Heading Receiver

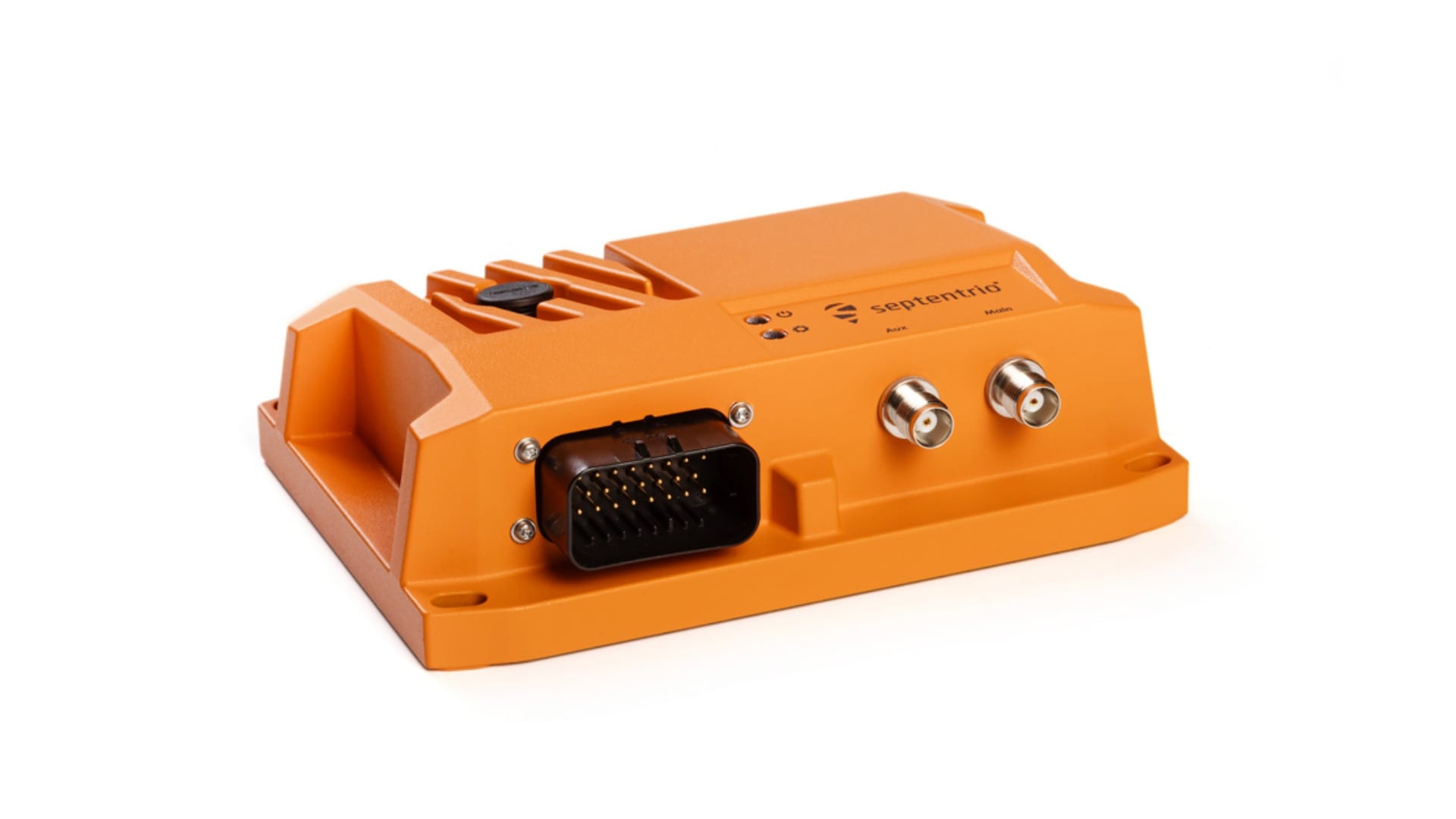

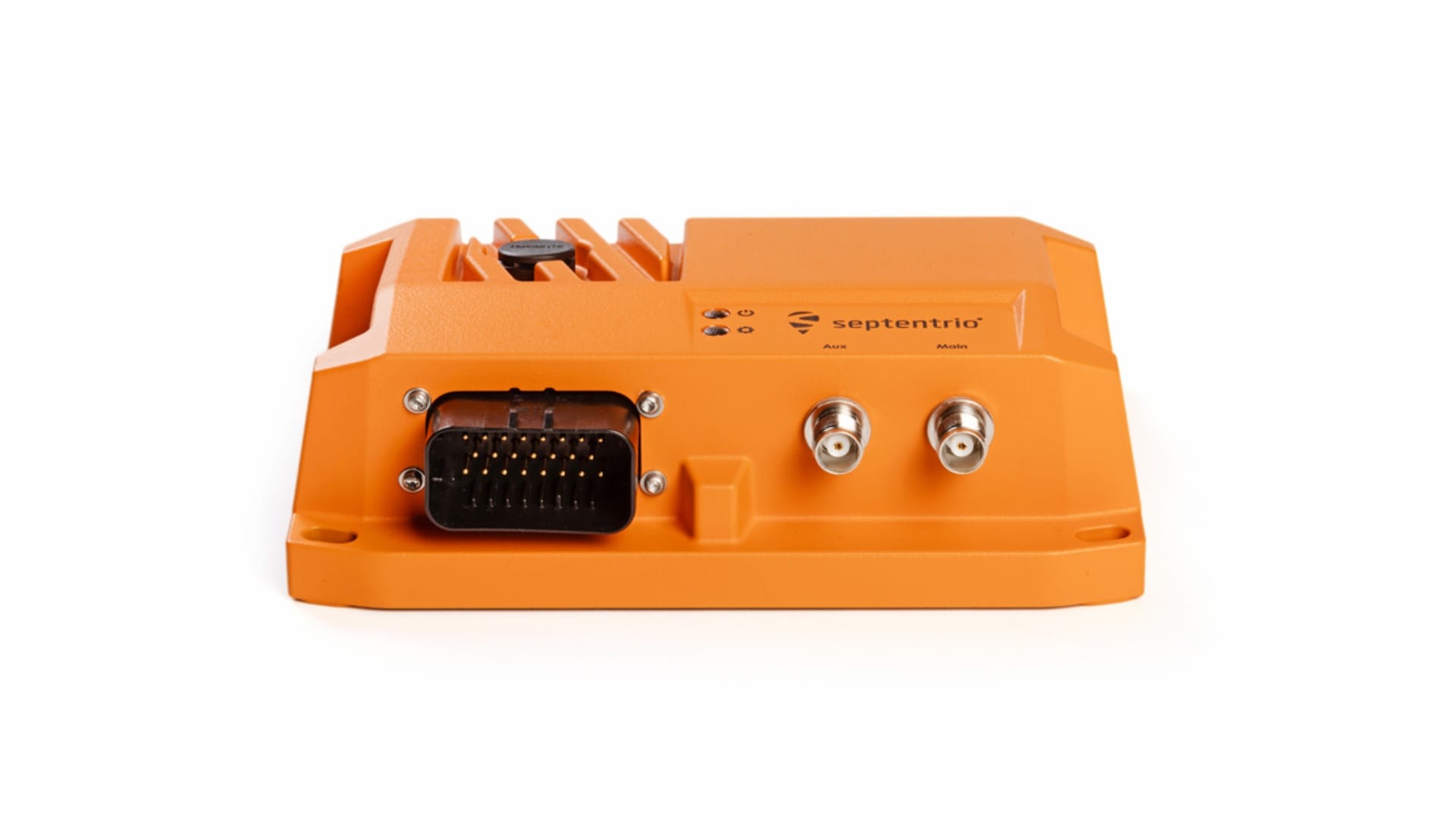

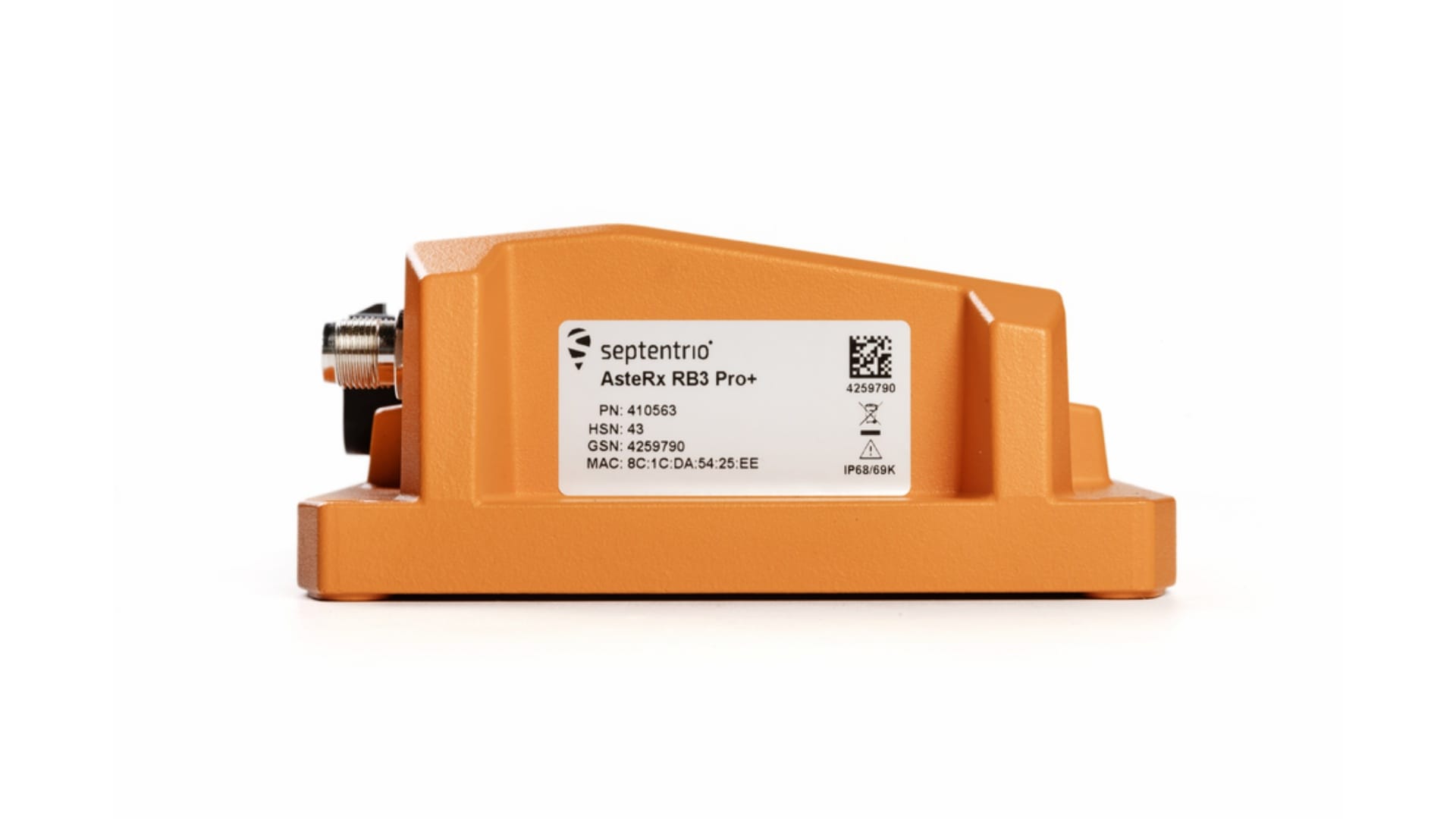

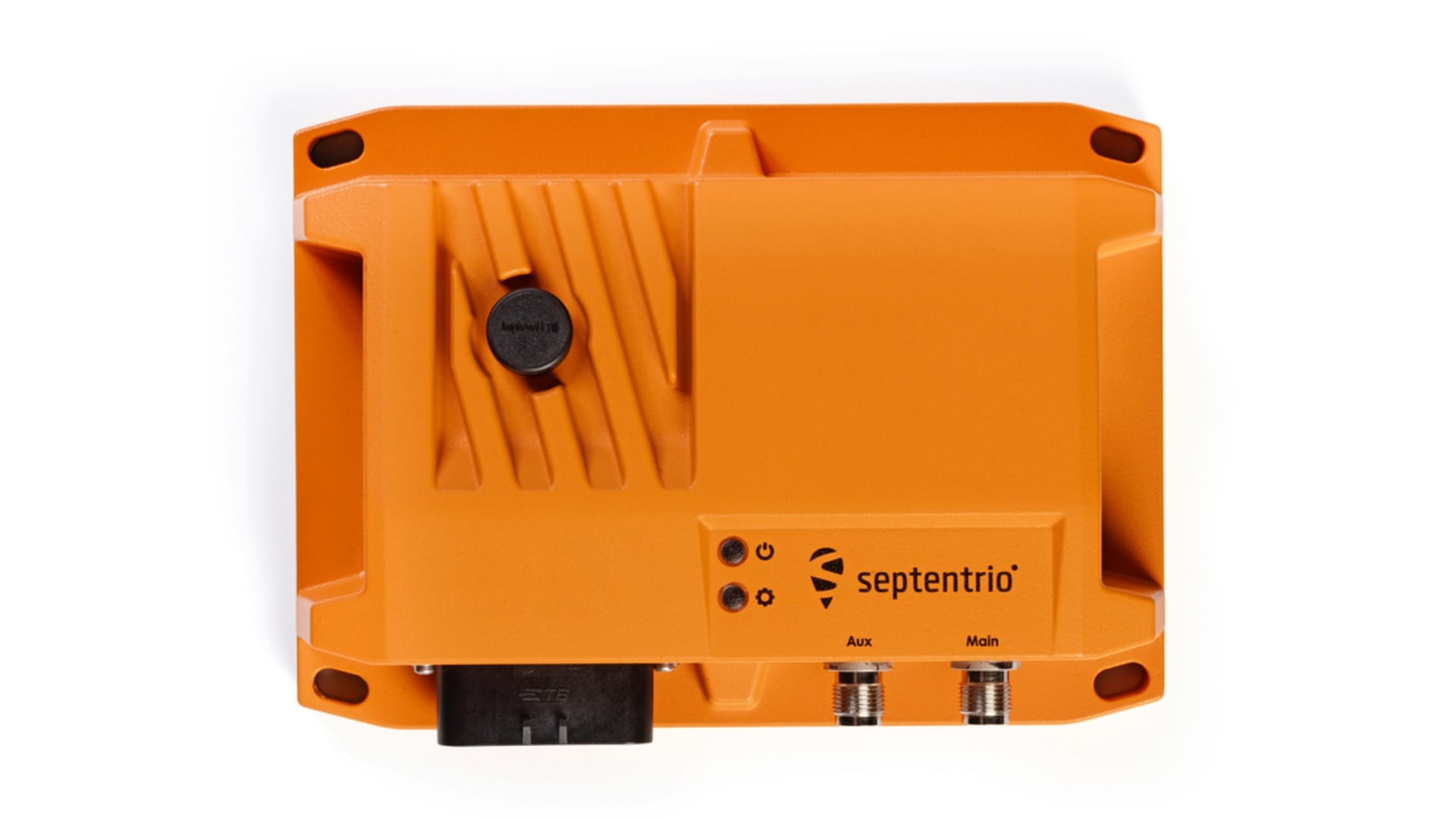

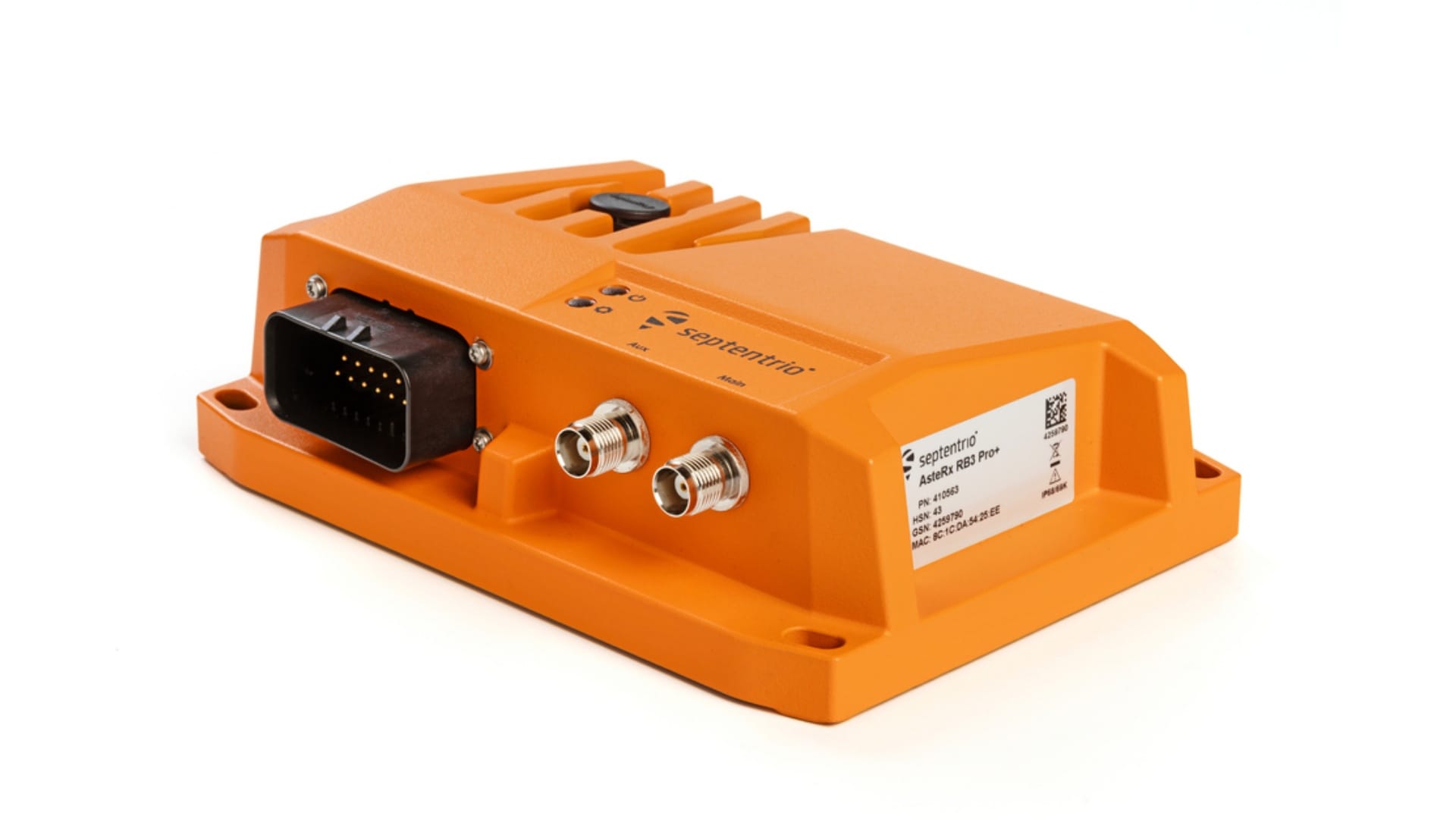

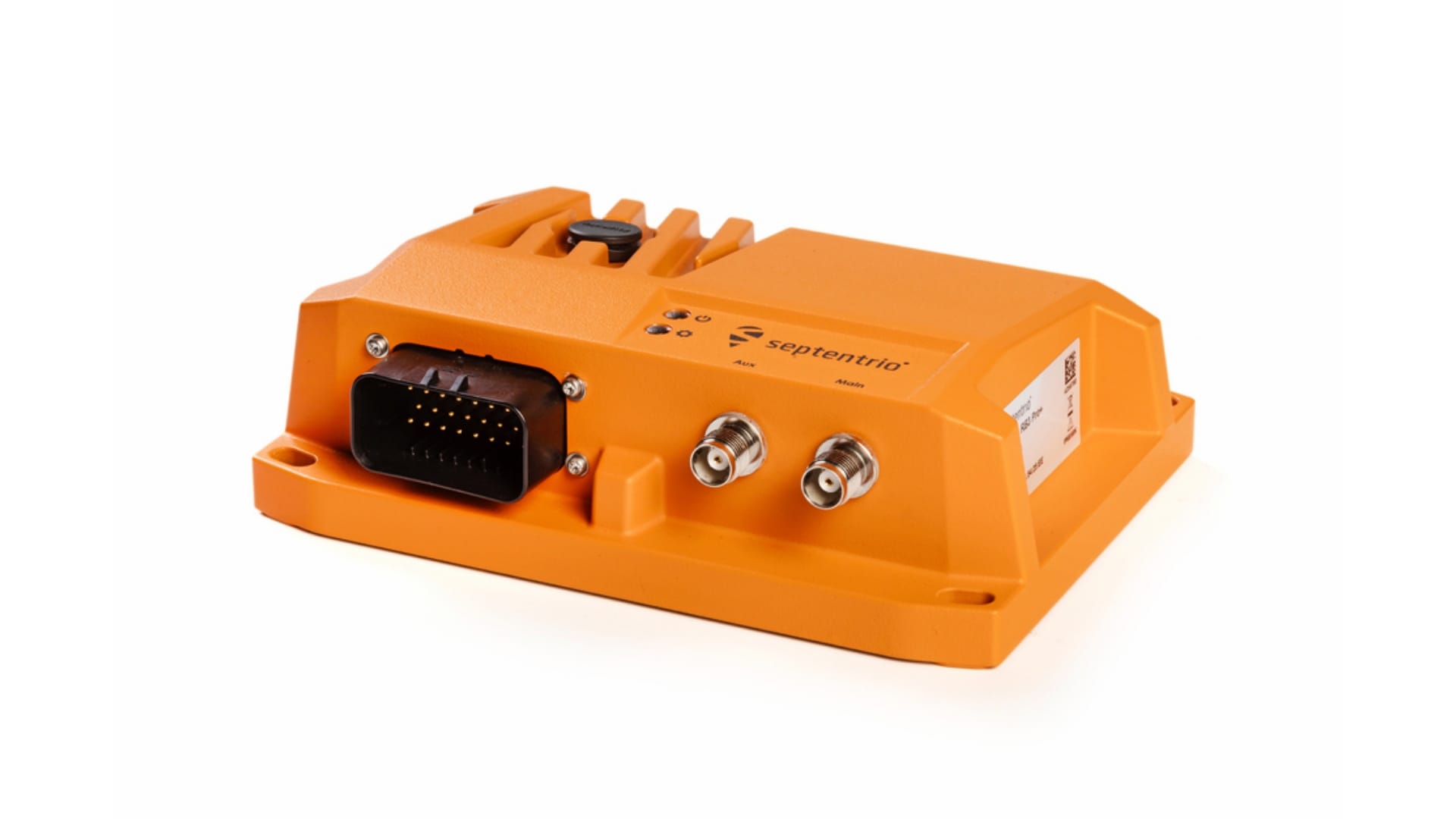

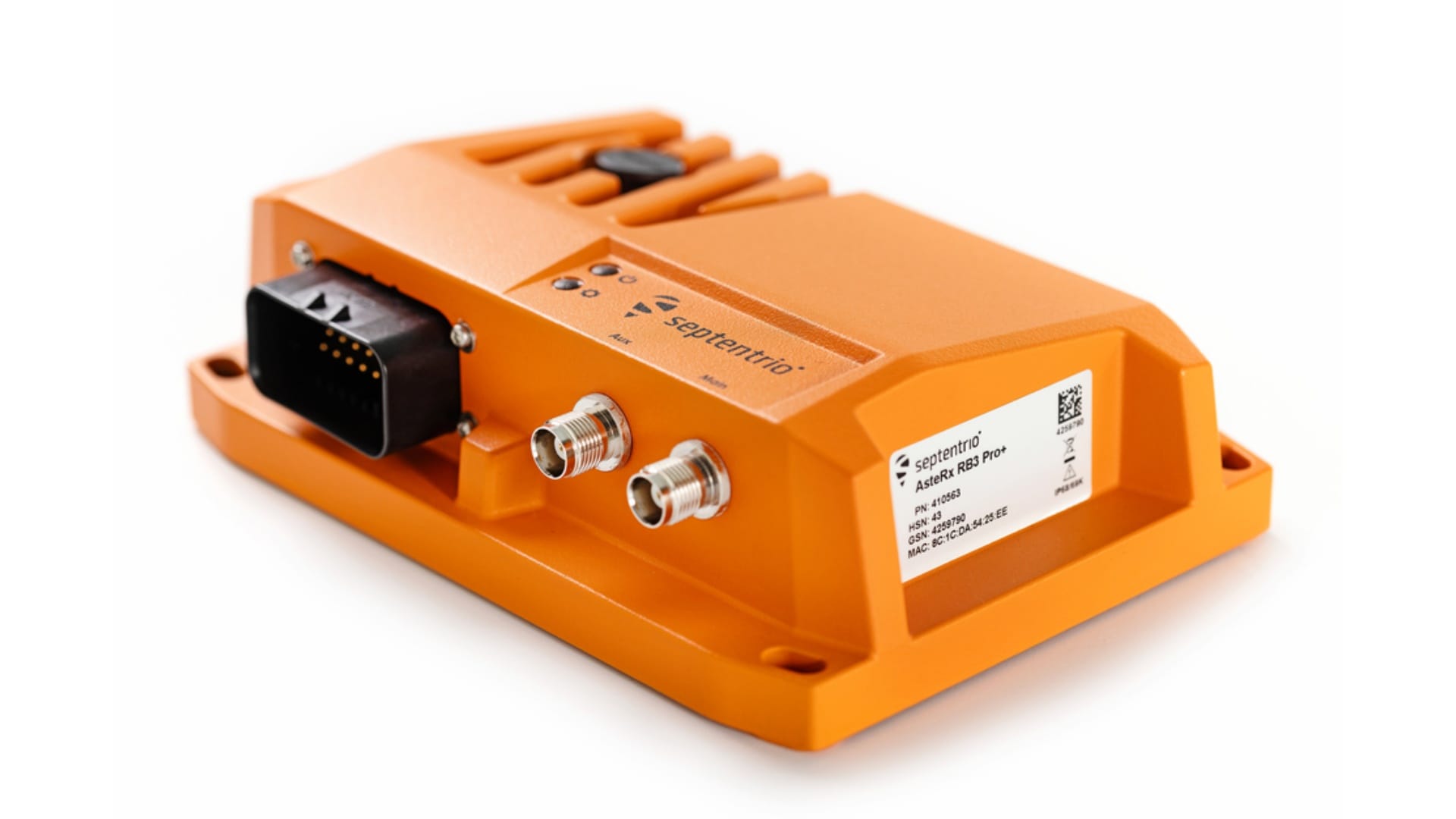

The Septentrio AsteRx RB3 Pro+ is a Rugged Dual-Antenna GNSS Receiver with advanced Multi-Frequency, Multi-Constellation GNSS Satellite signal tracking, 100Hz Update Rate, IP69k certification, 16GB Internal Memory and utilises Septentrio’s proprietary GNSS+ technology suite to not only achieve but maintain true, reliable centimetre-level RTK solutions.
The implementation of state-of-the-art capabilities such as AIM+, IONO+, APME+, RAIM+ and LOCK+ promises GNSS signal tracking and RTK-Fixed solutions where other brands fail.
It has been tested and tempered under the extreme and unforgiving testing environments to withstand the most severe and harshest working environments, and even in these conditions, the AsteRx RB3 Pro+ will deliver PVT and Heading to the purest and most accurate degree.
Key Strengths
Reliable Heading: Dual-antenna input ensures precise GNSS heading combined with centimeter-level RTK.
Extreme Environment Ready: Ultra-rugged housing with multi-frequency tracking, GNSS+, and high-update/low-latency outputs for fast feedback during movement or rotation.
Integration Made Easy: Fully documented interfaces, commands, and software tools enable quick system integration.
Applications
- Construction
- Logistics & Port Operations
- Mining
- Automation
KEY FEATURES
- Rugged and durable IP69K housing
- High-accuracy RTK positioning with all-in-view, GNSS multi-frequency satellite tracking
- Sub-degree GNSS heading option
- Flexibility to be used either as a rover or a base station
- GNSS+ algorithms ensure reliable performance in difficult environments
- Update rate up to 100 Hz
544 Hardware channels for simultaneous tracking of most visible signals
- GPS: L1 C/A, L1C, L2C, L2 P(Y), L5
- GLONASS: L1 C/A, L2C/A, L3, L2P
- BeiDou: B1I, B1C, B2a, B2b, B2I, B3I
- Galileo: E1, E5a, E5b, E5 AltBOC, E6
- QZSS: L1 C/A, L1C/B, L2C, L5
- NavIC: L5
- SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM
Septentrio’s patented GNSS+ technologies
- AIM+ industry leading anti-jamming, anti-spoofing interference monitoring & mitigation technology
- APME+ a posteriori multipath estimator for code and phase multipath mitigation
- LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
- IONO+ advanced scintillation mitigation
- RAIM+ (Receiver Autonomous Integrity Monitoring)
| RTK Performance | ||||
|---|---|---|---|---|
| Hor Accuracy | Ver Accuracy | Initialisation | ||
| 0.6 cm + 0.5 ppm | 1 cm + 1 ppm | 7 s | ||
| GNSS Attitude Accuracy | ||||
| Antenna Separation | Heading | Pitch/Rol | ||
| 1m | 0.15° | 0.25° | ||
| 5m | 0.03° | 0.05° | ||
| Position Accuracy | ||||
| Horizontal | Vertical | |||
| Standalone | 1.2 m | 1.9 m | ||
| SBAS | 0.6 m | 0.8 m | ||
| DGNSS | 0.4 m | 0.7 m | ||
| Maximum Update Rate | ||||
| Position | Measurements | |||
| 100 Hz | 100 Hz | |||
| Time Precision | ||||
| xPPS Out | Event Accuracy | |||
| 5 ns | < 20 ns | |||
| Time-to-first-fix (TTFF) | ||||
| Cold Start | Warm Start | Re-acquisition | ||
| < 45 s | < 20 s | avg. 1 s | ||
| Tracking Performance (C/N0 Threshold) | ||||
| Tracking | Acquisition | |||
| 20 dB-Hz | 33 dB-Hz | |||
| Other Metrics | ||||
| Velocity Accuracy | Latency | |||
| 0.03 m/s | < 10 ms | |||
Formats
- Septentrio Binary Format (SBF), fully documented with sample parsing tools
- NMEA 0183, v3.01, v4.0
- RTCM v2.x, v3.x (MSM messages included)
- CMR v2.0 and CMR+ (CMR+ input only)
Connectivity
- 2 x RS232
- USB full speed (device)
- CAN/CAN-FD
- Ethernet 10/100Mbps
- 2 x Event markers
- xPPS out
- 16 GB internal memory
SUPPORTING COMPONENTS
- Embedded Web UI with full control and monitoring functionality.
- RxTools, a complete and intuitive GUI tool set for receiver control, monitoring, data analysis and conversion.
- GNSS receiver communication SDK. Available for both Windows and Linux
| SWaP | ||||
|---|---|---|---|---|
| Size | Weight | Input voltage | ||
| 168 x 118 x 51 mm | 850 g | 9 to 32 VDC | ||
| Power Consumption | ||||
| GPS/GLO L1/L2 | All signals, all GNSS constellations | Maximum | ||
| 1.1 W | 1.3 W | 2.5 W | ||
| Connectors | ||||
| Antenna | IO Interfaces | |||
| 2 x TNC | 23-pin TE AmpSeal | |||
| Antenna LNA power output on TNC | ||||
| Output voltage | Maximum current | |||
| 5 VDC | 150 mA | |||
| Environmental | ||||
| Operating temperature | Ingress protection | Vibration | Shock | |
| -40°C to +70°C | IP69K with mated connectors | ISO16750-3 | ISO16750-3 | |
