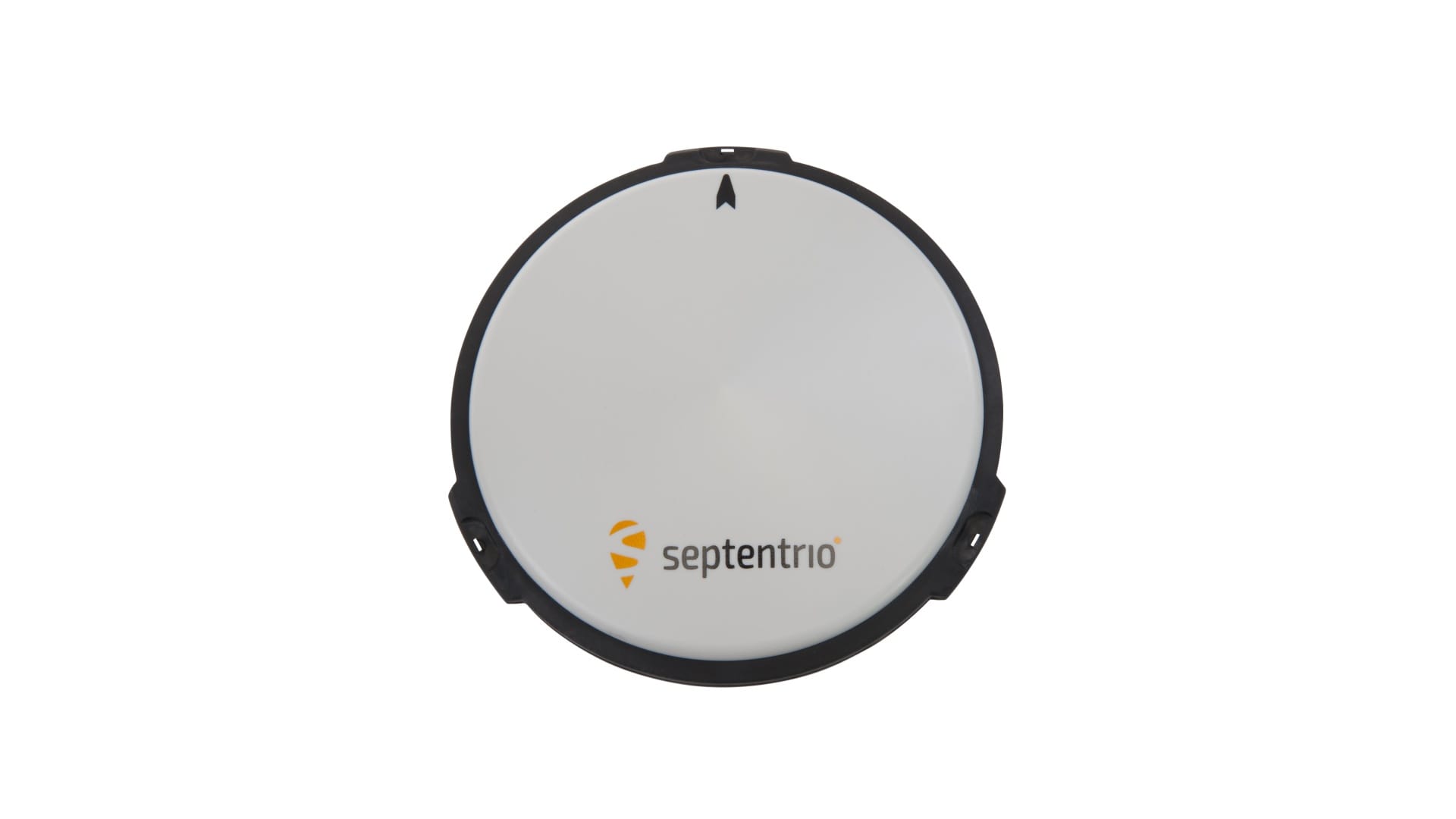

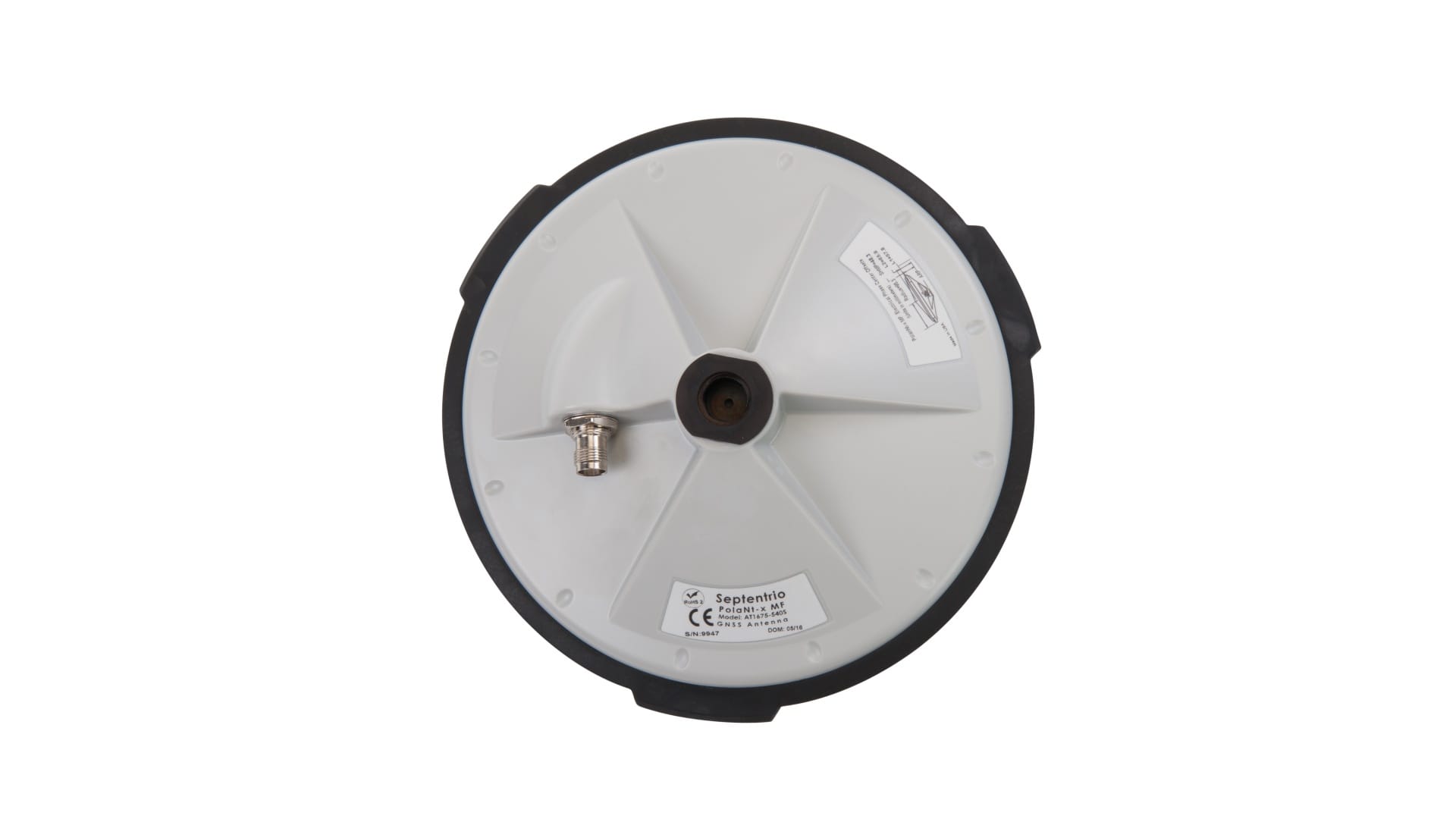

Lightweight Multi-Frequency Antenna
The PolaNt* MF.v2 – ideal for marine, geodetic, survey, and machine control applications with optimized ground-plane design.
Key Strengths
Rugged & Sealed: Ensures reliable reception in harsh environments.
Multi-Frequency Reception: Tracks upper and lower GNSS bands (1539–1615 MHz, 1164–1295 MHz).
Applications
- Marine
- Survey & GIS
- Automation
- Precision
- Agriculture
KEY FEATURES
- Multi-constellation tracking: GPS, Galileo, GLONASS, BeiDou, NavIC and QZSS
- Reception of Inmarsat L-Band signals compatible with correction services
- Superior multipath characteristics
- Ruggedized design
Signals
- L-Band (MSS)
- GPS: L1, L2, L5
- GLONASS: L1, L2, L3
- Beidou: B1, B2, B3
- Galileo: E1, E5a, E5b, E6
- SBAS: L1, L5
- NavIC: L5
- QZSS: L1, L2, L5, L6
| Frequencies | ||||
|---|---|---|---|---|
| 1539- 1615 MHz | 1164-1295 MHz | |||
| Axial Ratio | ||||
| 3 dB Max | ||||
| Radiation Coverage | ||||
| Zenith | 6.0 dBic | |||
| 15° elevation | -2.0 dBic | |||
| 10° elevation | -3.0 dBic | |||
| 5° elevation | -4.0 dBic | |||
| Horizon | -5.0 dBic | |||
| Amplifier | ||||
| Gain | 39 ± 2 dB | |||
| Noise Figure | 2.6 dB max | |||
| Input Voltage | +3 to 15 VDC | |||
| Current | 65 m A (typical) | |||
| Impedance | 50 Ω | |||
| VSWR | ≤ 2.0:1 | |||

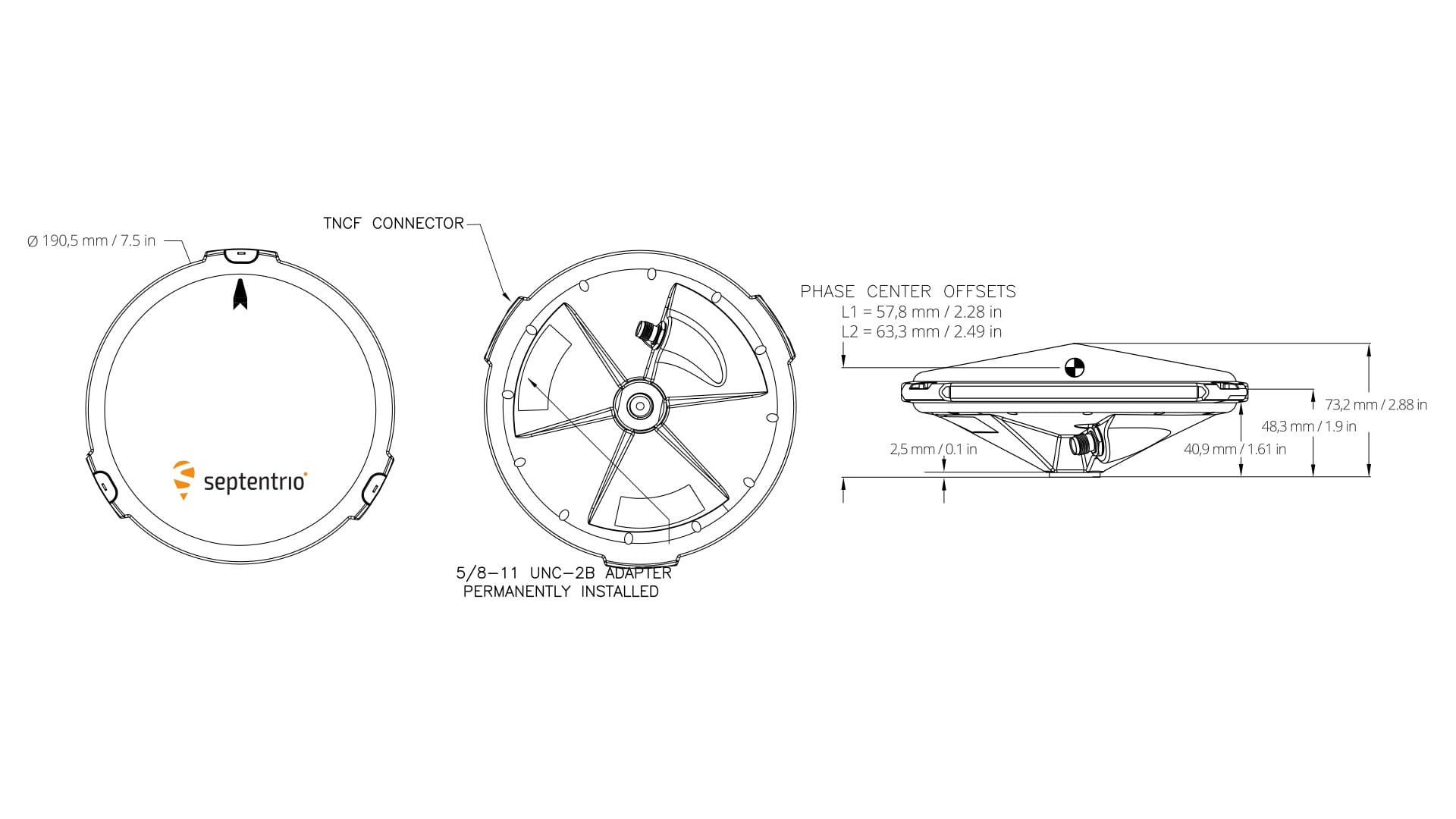

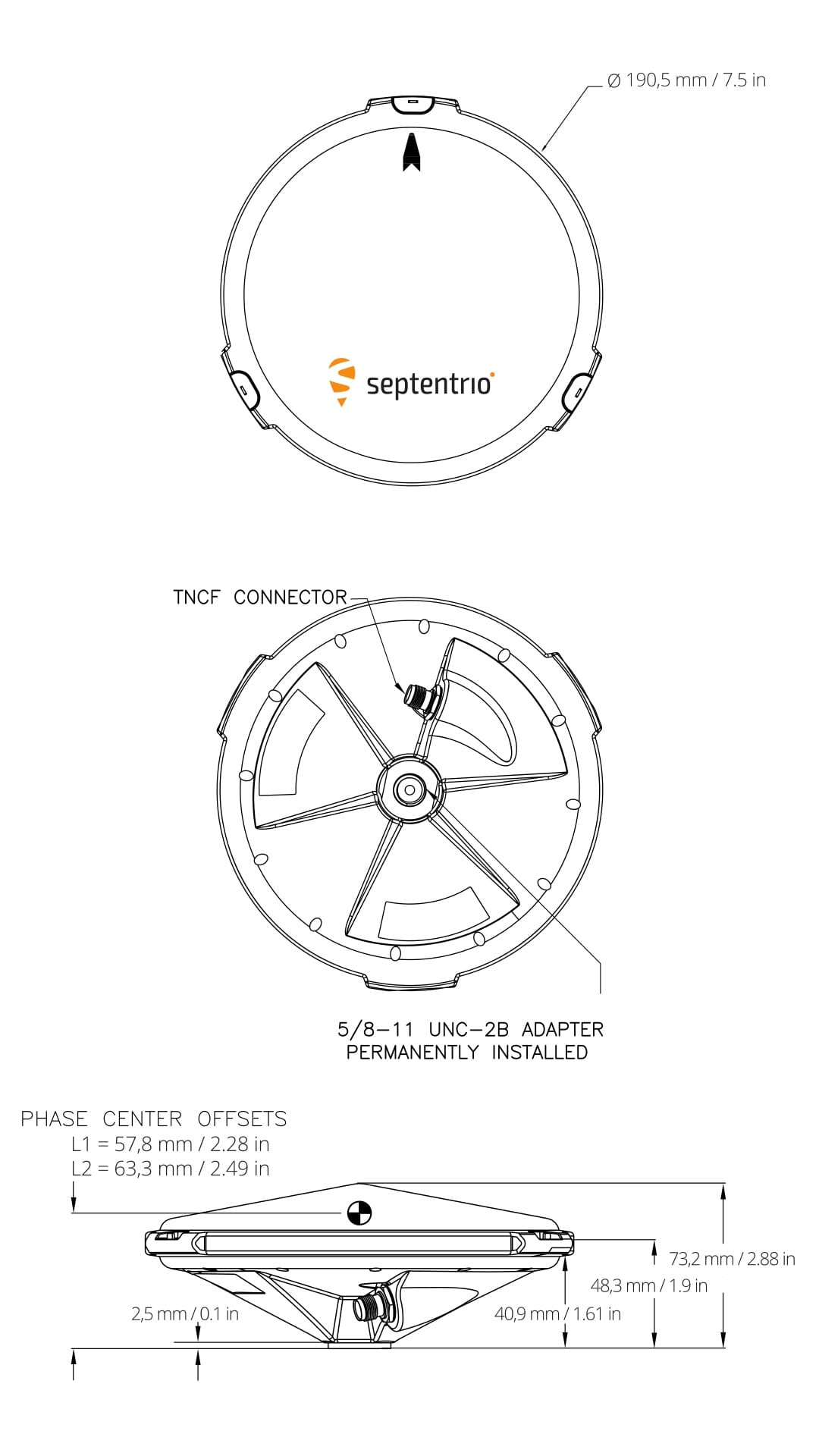

Mechanical Drawings
| Polarisation | |
|---|---|
| RHCP | |
| Finish | |
| Weatherproof polymer | |
| Weight | |
| 450 g | |
| Diameter | |
| 190 mm | |
| Connector | |
| TNC Female | |
| Temperature | |
| -50°C to +70°C | |
