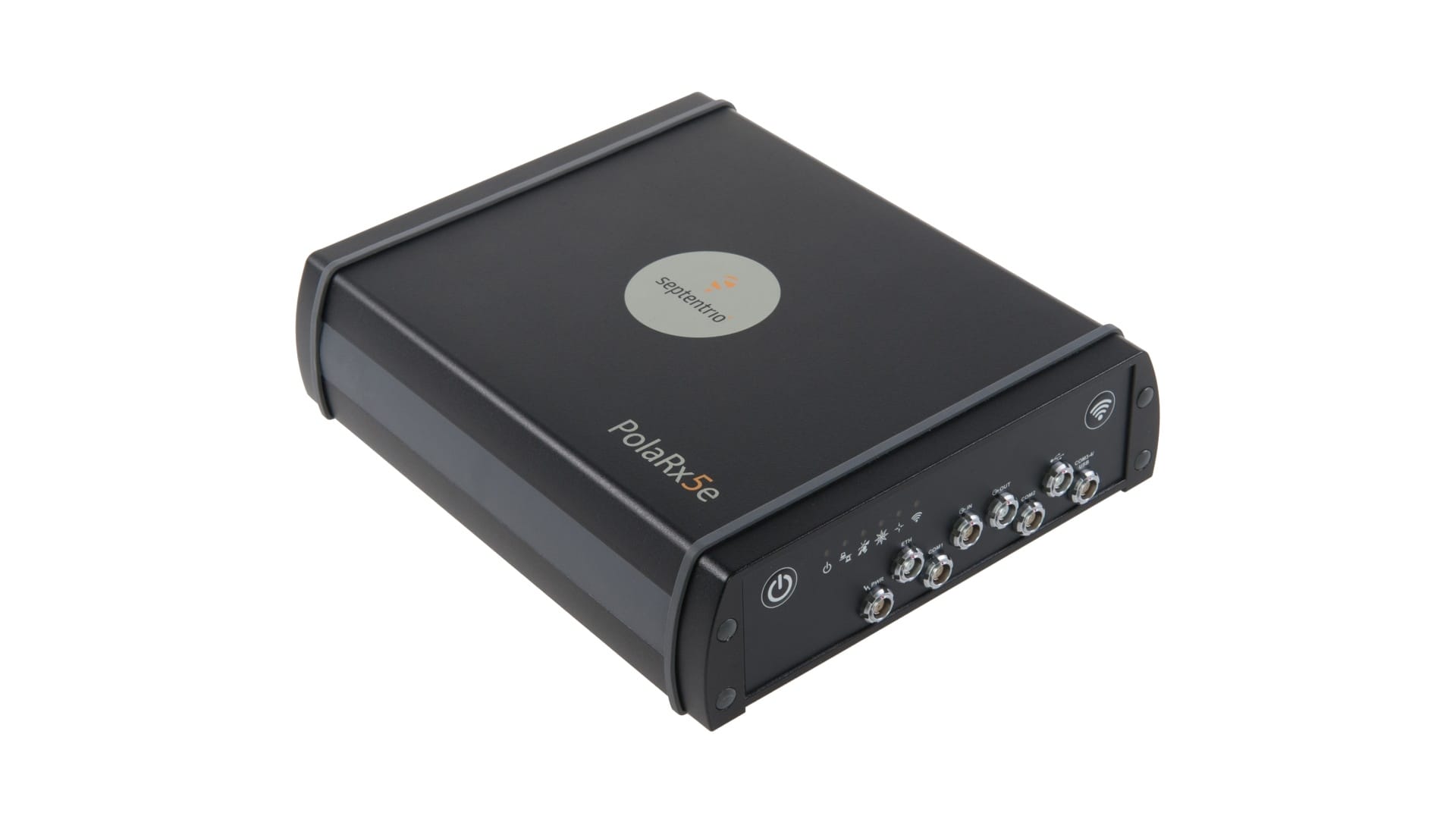

IP68 Multi-Frequency GNSS Reference Receiver
Ruggedized variant of the PolaRx5, designed for harsh outdoor environments.
Key Strengths
Interference Protection: AIM+, LOCK+, APME+ ensure reliable measurements.
Remote Data Management: Web UI, FTP push, and internal/external storage.
Low Cycle-Slip Rates: Consistently accurate measurements in challenging conditions.
Applications
- Scientific
- Reference Network Stations
KEY FEATURES
- Tracks all visible signals (GPS, GLONASS, Galileo, BeiDou, NAVIC, QZSS and SBAS)
- High precision, low noise measurements
- AIM+ interference monitoring and mitigation system
- OSNMA support
- Low and scalable power consumption
- Smart telemetry system (SYNC+)
- Internal battery for autonomous ~24-hour operation (optional configuration)
GNSS technology
- 544 Hardware channels for simultaneous tracking of all visible satellite signals
- P-code tracking on L1 and L2 to avoid CA-P biases
- Independent tracking of L2C (GPS)
- Up to 100 Hz raw data output (code, carrier, navigation data) (optional feature)
- OSNMA Support
- Spectrum analyser
- Scalable power consumption
- RTK and DGNSS corrections (optional feature)
- PPP for seismic applications (optional feature)
Septentrio’s patented GNSS+ technologies
- AIM+ industry leading anti-jamming, anti-spoofing interference monitoring & mitigation technology
- APME+ a posteriori multipath estimator for code and phase multipath mitigation
- LOCK+ superior tracking robustness under heavy mechanical shocks or vibrations
| Measurement precision | ||||
|---|---|---|---|---|
| GPS | Unsmoothed pseudorange (cm) | |||
| L1C/A, L2C | 16 | |||
| P code | 10 | |||
| L1C | 8 | |||
| L5 | 6 | |||
| GLONASS | Unsmoothed pseudorange (cm) | |||
| L1 C/A, L2 C/A | 25 | |||
| P code | 10 | |||
| L3 | 6 | |||
| Galileo | Unsmoothed pseudorange (cm) | |||
| E1 | 8 | |||
| E5a, E5b | 6 | |||
| E5AltBOC | 1.5 | |||
| E6 | 7 | |||
| BeiDou | Unsmoothed pseudorange (cm) | |||
| B1I,B1C, B2I | 8 | |||
| B2a, B2b, B3I | 6 | |||
| NavIC | Unsmoothed pseudorange (cm) | |||
| L5 | 16 | |||
| QZSS | Unsmoothed pseudorange (cm) | |||
| L1 C/A, L2C, L1S | 16 | |||
| L1C | 8 | |||
| L5 | 6 | |||
| All Signals | Unsmoothed pseudorange (cm) | |||
| Carrier phase | 1 - 1.3 mm | |||
| Static performance (RMS) | ||||
| Static and rapid static | ||||
| Horizontal | 3mm + 0.5ppm | |||
| Vertical | 5mm + 0.5ppm | |||
| Static high precision | ||||
| Horizontal | 3mm + 0.1ppm | |||
| Vertical | 3.5mm + 0.4ppm | |||
| Maximum Update Rate | ||||
| Measurements | 100 Hz | |||
| Time Accuracy | ||||
| 1 PPS out | 1 PPS out rise time | Events | ||
| 5 ns | < 2 ns | < 20 ns | ||
| Time-to-first-fix (TTFF) | ||||
| Cold Start | Warm Start | Re-acquisition | ||
| < 45 s | < 20 s | avg. 1.2 s | ||
| Tracking Performance (C/N0 Threshold) | ||||
| Tracking | Acquisition | |||
| 20 dB-Hz | 33 dB-Hz | |||
Formats
- Septentrio Binary Format (SBF), fully documented with sample parsing tools
- RINEX (obs, nav, meteo) v2.x, 3.05, 4.00
- BINEX
- NMEA v2.30 and v4.10 output
- RTCM output (All MSM messages supported)
- CMR 2.0 output
- Support for standard MET/Tilt sensors
- 16 GB Standard on-board logging
- Up to 40 logging jobs (8 independent sessions x 5 data formats)
Connectivity
- 10 MHz reference input
- 10 MHz reference output
- xPPS output (max 100 Hz)
- 4 Hi-speed serial ports
- 1 Ethernet port (100 MBps)
- Integrated WiFi (802.11b/g/n)
- Power over ethernet
- 1 Full-speed USB port
- 1 USB host socket for external disk
- HTTP/HTTPS
- Advanced Web UI providing all receiver controls, and status monitoring. Alternatively, a light Web UI for low bandwidth connections
- FTP server, FTP push, SFTP, SYNC+, CloudIT
- NTRIP (v1 and v2) client, server and caster
- Point-to-Point communication protocol
SUPPORTING COMPONENTS
- RxTools: complete and intuitive GUI tool set for receiver control, monitoring, data analysis and conversion. It is available for both Windows and Linux
- GNSS receiver communication SDK
| SWaP | ||||
|---|---|---|---|---|
| Size | Weight | Input voltage | Power consumption | |
| 222 x 190 x 58 mm | 1.9 kg | 9 – 30 VDC | 1.8 - 4.7 W | |
| Internal battery | ||||
| 7.5 V, 6400 mAh, Li-Ion | ||||
| Continuous operation | ||||
| ~24 hours | ||||
| Antenna LNA power output on TNC | ||||
| Output voltage | Maximum current | |||
| +5 VDC | 200 mA | |||

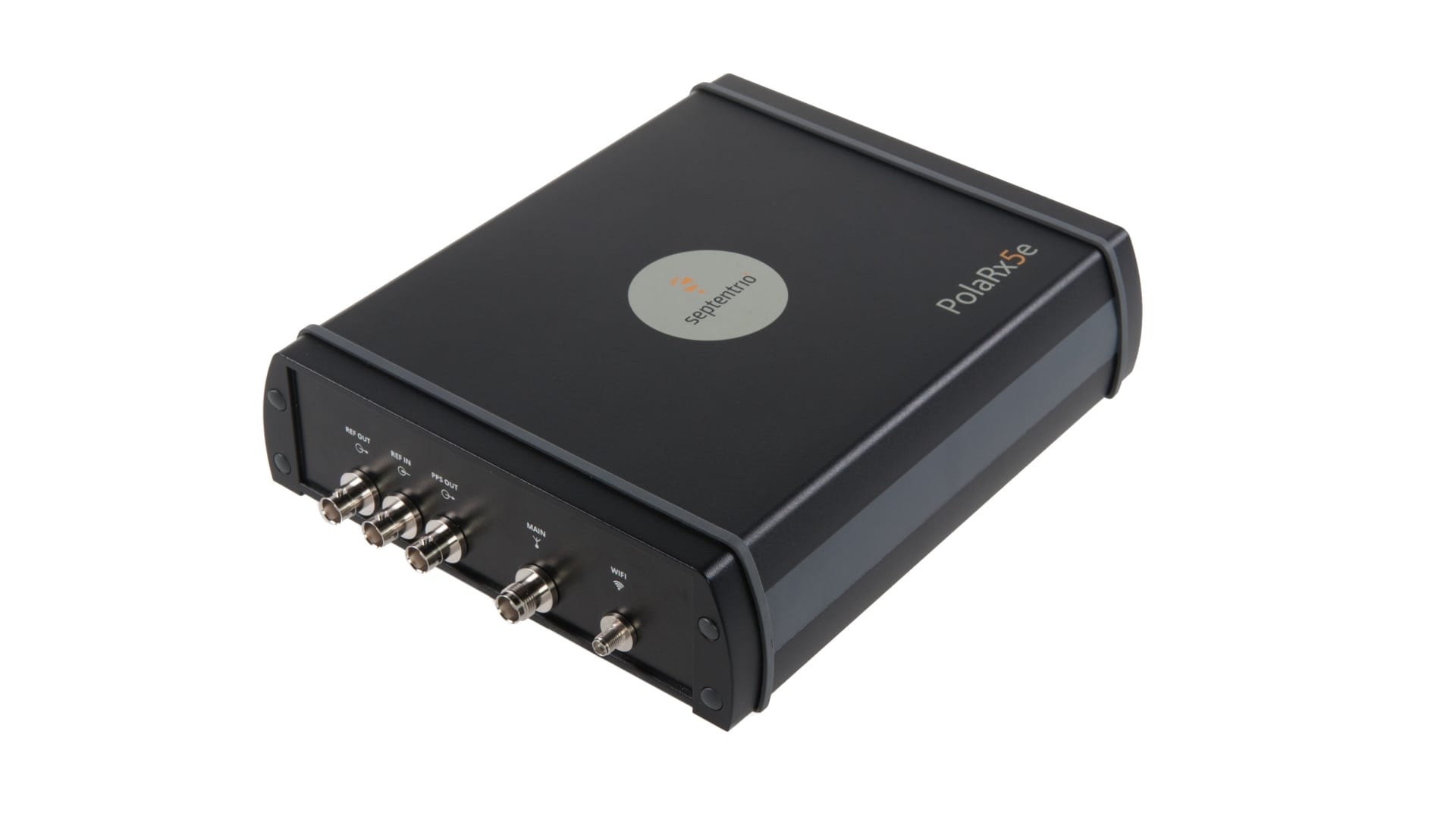

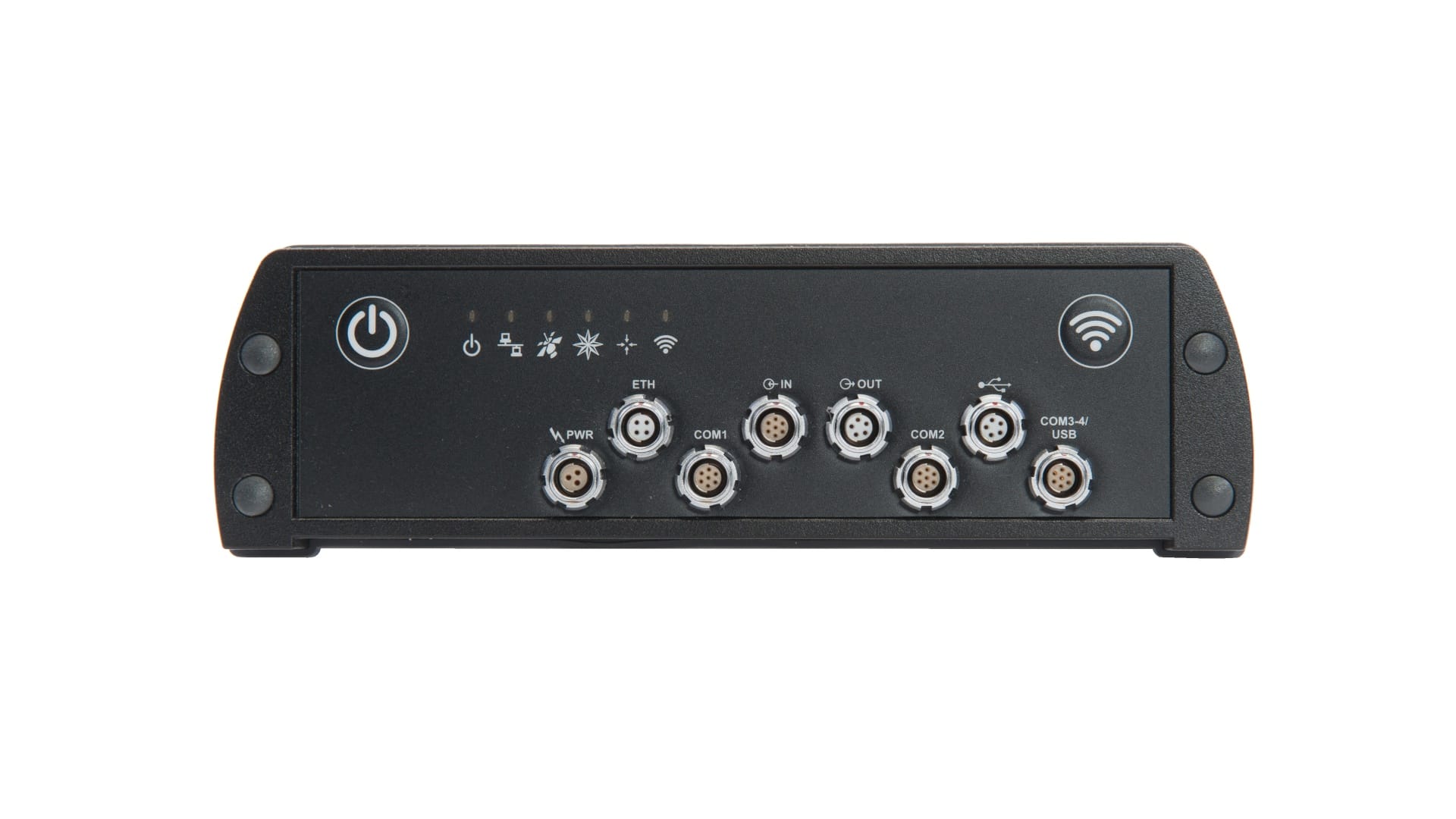

| Connectors | ||||
| Antenna | TNC female | |||
| REF IN | BNC female | |||
| REF OUT | BNC female | |||
| PPS OUT | BNC female | |||
| Power | ODU 3 pins female | |||
| COM1 | ODU 7 pins female | |||
| COM2 | ODU 7 pins female | |||
| COM3/4/USB | ODU 7 pins female | |||
| USB Host | ODU 5 pins female | |||
| IN | ODU 7 pins female | |||
| OUT | ODU 5 pins female | |||
| Ethernet | ODU 4 pins female | |||
| WiFi antenna | SMA female | |||
| Environmental | ||||
| Operating temperature | Storage temperature | Humidity | IP rating | |
| -40°C to +65°C | -40°C to +85°C | 5 % to 100 % (non-condensing) | IP68 | |
